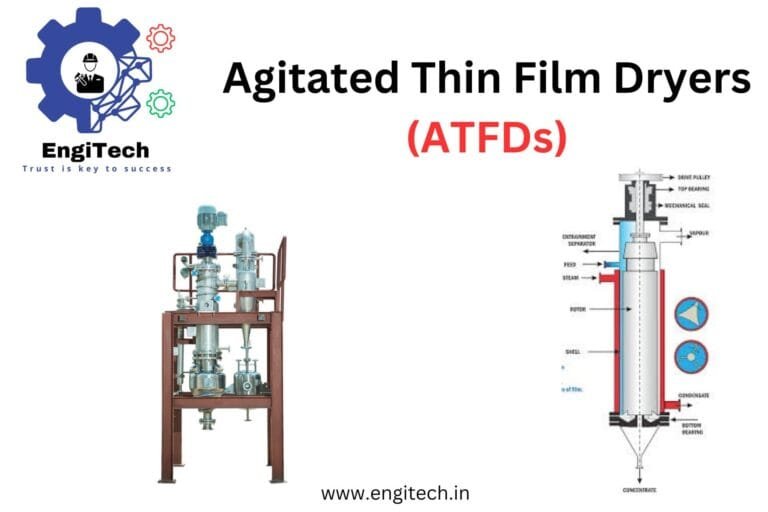

Understanding Agitated Thin Film Dryers
Agitated Thin Film Dryers (ATFDs) offer efficient and effective drying solutions for heat-sensitive, viscous, and sticky materials. These dryers excel in processing materials that traditional drying methods struggle with. This guide explores the working principles, unique features, applications, benefits, and advancements of agitated thin film dryers.
How Agitated Thin Film Dryers Work
- Feed Introduction: Introduce the wet feed into the dryer through a feed inlet located at the top of the equipment. The feed flows onto a heated surface, typically a cylindrical wall.
- Film Formation: The agitator, equipped with blades or scrapers, spreads the feed into a thin film over the heated surface. The constant motion of the blades ensures that the film remains thin and uniform.
- Heat Transfer: The thin film of the material comes into direct contact with the heated surface. The high surface-to-volume ratio facilitates efficient heat transfer, leading to rapid evaporation of the solvent or moisture.
- Vapor Removal: The vacuum system or an inert gas flow removes the evaporated moisture or solvent from the drying chamber, preventing oxidation or contamination.
- Discharge: Collect the dried product, usually in the form of a powder or flakes, at the bottom of the dryer and discharge it through an outlet.
Unique Features of Agitated Thin Film Dryers
- High Heat Transfer Efficiency: The formation of a thin film and continuous agitation ensures efficient heat transfer, leading to rapid drying.
- Low Operating Temperatures: Operate ATFDs at low temperatures, making them ideal for drying heat-sensitive materials without degradation.
- Uniform Drying: The continuous agitation prevents the formation of hot spots, ensuring uniform drying across the entire surface.
- Handling Viscous Materials: The robust design and agitation mechanism handle highly viscous and sticky materials that other dryers find challenging.
- Minimal Residence Time: The short residence time within the dryer minimizes the risk of thermal degradation, making ATFDs suitable for sensitive products.
Applications Across Industries
Pharmaceuticals:
- Dry active pharmaceutical ingredients (APIs) and intermediates.
- Produce high-purity products without thermal degradation.
Chemicals:
- Process heat-sensitive chemicals, resins, and polymers.
- Dry high-viscosity fluids and sticky substances.
Food Processing:
- Dry fruit purees, vegetable pastes, and other high-moisture food products.
- Maintain nutritional value and sensory properties.
Waste Management:
- Treat industrial effluents and wastewater sludges.
- Reduce waste volume and facilitate disposal or further processing.
Biotechnology:
- Dry enzymes, proteins, and other biological materials.
- Preserve the activity and stability of sensitive biomolecules.
Advantages of Using Agitated Thin Film Dryers
Energy Efficiency: ATFDs use energy efficiently due to high heat transfer rates and reduced drying times. This efficiency results in lower operating costs.
Product Quality: The gentle drying process preserves the quality, potency, and characteristics of the dried product, making ATFDs ideal for sensitive materials.
Versatility: Handle a wide range of materials, including high-viscosity liquids, slurries, and pastes. This versatility makes ATFDs suitable for various industries.
Scalability: Choose from different sizes, from laboratory-scale units to large industrial systems, allowing easy scalability of processes.
Environmentally Friendly: Reduce the need for high temperatures and minimize waste, offering an environmentally friendly drying solution.
Key Considerations for Choosing an ATFD
Material Characteristics: Understand the physical and chemical properties of the material to be dried, including viscosity, thermal sensitivity, and moisture content. This helps in selecting the appropriate ATFD configuration and operating conditions.
Production Capacity: Determine your production requirements and choose an ATFD that can handle the desired throughput efficiently. Consider both current and future capacity needs.
Energy Consumption: Evaluate the energy efficiency of the ATFD. Look for features that enhance heat transfer and reduce energy consumption, such as optimized agitator designs and advanced control systems.
Control and Automation: Opt for a dryer with sophisticated control and automation features that allow precise monitoring and adjustment of process parameters. This ensures consistent product quality and operational efficiency.
Maintenance and Cleaning: Consider the ease of maintenance and cleaning when selecting an ATFD. Designs that allow easy access to internal components and quick cleaning procedures reduce downtime and improve productivity.
Technological Advancements in ATFDs
Advanced Agitator Designs: New agitator designs enhance the spreading and mixing of the material, improving heat transfer and drying efficiency.
Integrated Control Systems: Modern ATFDs feature integrated control systems that provide real-time monitoring and control of drying parameters, ensuring optimal performance.
Energy Recovery Systems: Innovations in energy recovery systems capture and reuse heat, reducing energy consumption and operational costs.
Material Innovations: The use of advanced materials for construction enhances the durability and performance of ATFDs, allowing them to handle more challenging drying tasks.
Conclusion
Agitated thin film dryers have become indispensable in various industries due to their efficiency, versatility, and ability to handle challenging materials. By understanding their working principles, unique features, applications, and benefits, you can optimize your drying processes and achieve superior product quality. Continuous advancements in ATFD technology promise even greater efficiency and broader applications, making them a key component of modern industrial processes.
